Parker® 7770 08 00

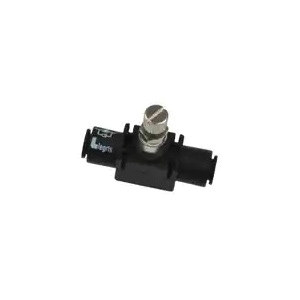

Parker® 7770 08 00 Unidirectional In-Line Regulator with External Adjustment, 5/16 in Tube Inlet x 5/16 in Tube Outlet

  • Manufacturers: Parker Hannifin
  • Brand Name: Parker®
  • Tipco Part No: LEC 7770 08 00
  • MPN: 7770 08 00
  • UOM: EA
  • Min. Order Qty: 5
  • Qty. Interval: 5
  • Register to see Availability

Parker® Unidirectional In-Line Regulator with External Adjustment, Inlet Pipe Size: 5/16 in, Outlet Pipe Size: 5/16 in, Inlet Thread Type: Tube, Outlet Thread Type: Tube, 10 bar, Technical Polymer, Includes: NBR O-Ring/Stainless Steel Gripping Ring

California residents see Prop 65 WARNINGS

Product Type      :      Regulator
Inlet Pipe Size      :      5/16 in
Outlet Pipe Size      :      5/16 in
Inlet Thread Type      :      Tube
Outlet Thread Type      :      Tube
Pressure Rating      :      10 bar
Material      :      Technical Polymer
Includes      :      NBR O-Ring/Stainless Steel Gripping Ring

Parker® Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminum bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustment, this range of products helps you improve your productivity and performance with accuracy.

  • Higher maximum flow than standard regulators
  • Full flow with minimum pressure drop (model 7060)
  • Optimal control of the cylinder rod speed
  • 100% leak tested in production
  • Date coding to guarantee quality and traceability
  • Reduce compressed air and energy consumption
  • Precise adjustment for accurate flow regulation from initial to maximum opening
  • Constant cylinder rod displacement speed
  • Long term stability of flow
  • External adjustment screw easy to adjust without tooling and lockable
  • Recessed adjustment screw - more compact and protects the adjustment mechanism
  • Uni-directional - exhaust or inlet
  • Bi-directional adjustment of air flow in both directions
  • 360 deg positioning
  • Media - compressed air, other fluid

Applications: For pneumatics, robotics, semi-conductors, textile, automotive process and packaging
