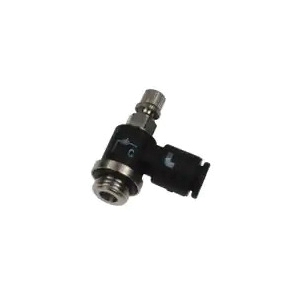

Parker® Bidirectional Regulator with External Adjustment, Inlet Pipe Size: 6 mm, M5 x 0.8 Thread, Inlet Thread Type: Tube, Outlet Thread Type: Threaded, 10 bar, Technical Polymer, Includes: NBR O-Ring/Stainless Steel Gripping Ring
California residents see Prop 65 WARNINGS
| Product Type | : | Regulator |
| Inlet Pipe Size | : | 6 mm |
| Thread Size | : | M5 x 0.8 |
| Inlet Thread Type | : | Tube |
| Outlet Thread Type | : | Threaded |
| Pressure Rating | : | 10 bar |
| Material | : | Technical Polymer |
| Includes | : | NBR O-Ring/Stainless Steel Gripping Ring |
Parker® Legris flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminum bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustment, this range of products helps you improve your productivity and performance with accuracy.
- Higher maximum flow than standard regulators
- Full flow with minimum pressure drop (model 7060)
- Optimal control of the cylinder rod speed
- 100% leak tested in production
- Date coding to guarantee quality and traceability
- Reduce compressed air and energy consumption
- Precise adjustment for accurate flow regulation from initial to maximum opening
- Constant cylinder rod displacement speed
- Long term stability of flow
- External adjustment screw easy to adjust without tooling and lockable
- Recessed adjustment screw - more compact and protects the adjustment mechanism
- Uni-directional - exhaust or inlet
- Bi-directional adjustment of air flow in both directions
- 360 deg positioning
- Media - compressed air, other fluid
Applications: For pneumatics, robotics, semi-conductors, textile, automotive process and packaging
