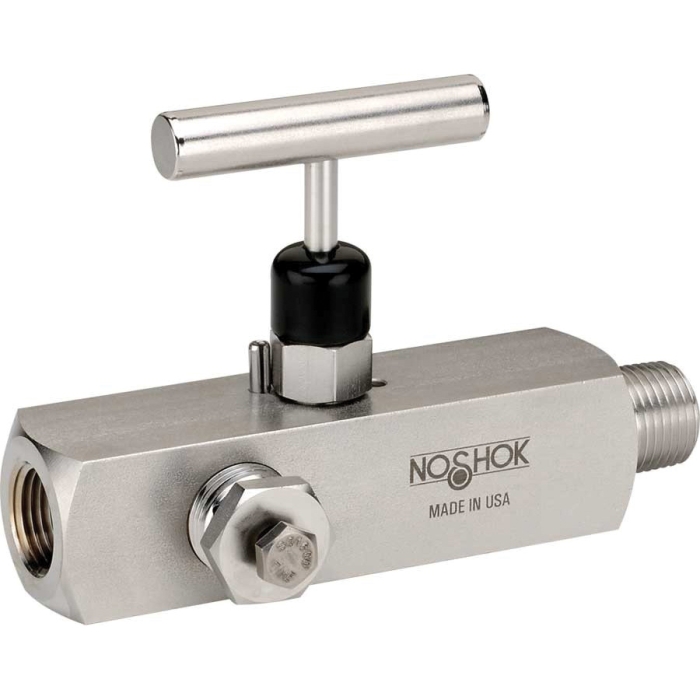

NOSHOK Multiport Soft Seat Needle Valve, 300 Series, Nominal Size: 1/2 in, Connection Type: MPT x FPT, 316 Stainless Steel, 316 Stainless Steel Stem, PTFE Packing Trim, FKM/PTFE Seal, Flow Coefficient: 0.64 Cv, Finish: Electropolished, 5-3/8 in Length, 3-25/32 in Height, 200 deg F, 6000 psi
California residents see Prop 65 WARNINGS
| Product Type | : | Needle Valve |
| Series | : | 300 |
| Nominal Size | : | 1/2 in |
| Connection Type | : | MPT x FPT |
| Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Stem, PTFE Packing |
| Seal Material | : | FKM/PTFE |
| Flow Coefficient | : | 0.64 Cv |
| Finish | : | Electropolished |
| Length | : | 5-3/8 in |
| Height | : | 3-25/32 in |
| Temperature Rating | : | 200 deg F |
| Pressure Rating | : | 6000 psi |
- Multiport design reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths
- 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
- Replaceable Delrin® seat and straight through porting for bidirectional, high-capacity flow and easy roddable cleaning
- Blowout-proof stem provides a secondary stem seal in the full open position
- FKM O-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
- All stem threads are rolled for strength and ease of operation
- 1-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Vinyl dust cap for bonnet and stem
- Made in USA
