Stauff® BBV-2-F308-0001-M

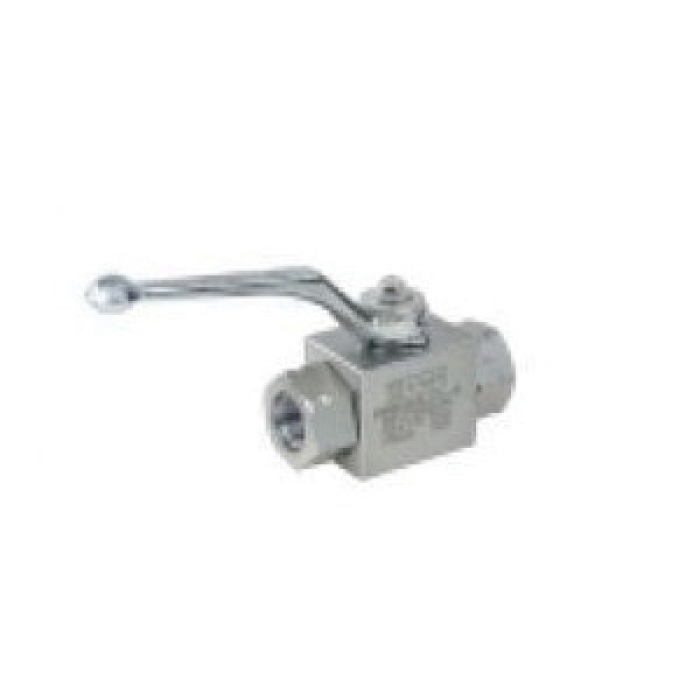

Stauff® BBV-2-F Zinc/Iron-Plated Carbon Steel 2-Way High-Pressure Block Body Ball Valve, 1/2 in SAE Code 61 Split Flange, 5000 psi

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA BBV2F3080001M
  • MPN: BBV-2-F308-0001-M
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® 2-Way High-Pressure Block Body Ball Valve, BBV-2-F Series, Nominal Size: 1/2 in, Connection Type: SAE Code 61 Flange, Actuator Type: Lever, Carbon Steel, Carbon Steel Ball and Stem, Delrin Seat Trim, FKM Seal, Finish: Zinc/Iron-Plated, 5.94 in Length, 2.13 in Height, 1.38 in Width, -4 to 212 deg F, 5000 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Series      :      BBV-2-F
Nominal Size      :      1/2 in
Connection Type      :      SAE Code 61 Flange
Actuator Type      :      Lever
Material      :      Carbon Steel
Trim Material      :      Carbon Steel Ball and Stem, Delrin Seat
Seal Material      :      FKM
Finish      :      Zinc/Iron-Plated
Length      :      5.94 in
Height      :      2.13 in
Width      :      1.38 in
Temperature Rating      :      -4 to 212 deg F
Pressure Rating      :      5000 psi
  • Block body design for in-line assembly
  • Supplied with lever

Applications: For hydraulic applications
