Dixon® HPBV38

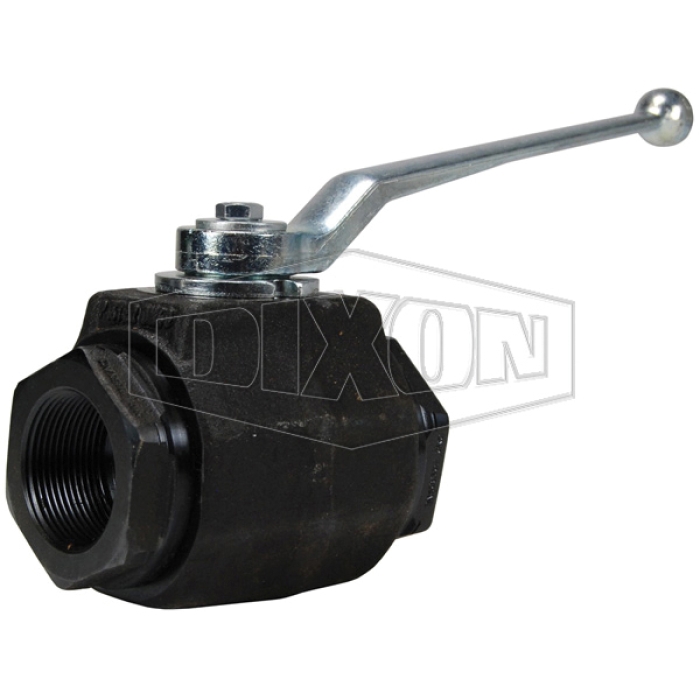

Dixon® HPBV38 Carbon Steel High-Pressure Full-Bore Ball Valve, 3/8 in NPTF, 7350 psi

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN HPBV38
  • MPN: HPBV38
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® High-Pressure Full-Bore Ball Valve, Nominal Size: 3/8 in, Connection Type: NPTF, Carbon Steel, Polyacetal Trim, FKM/FPM Seal, 2-7/8 in Length, 1-17/64 in Width, -20 to 215 deg F, 7350 psi

California residents see Prop 65 WARNINGS

Product Type      :      Ball Valve
Nominal Size      :      3/8 in
Connection Type      :      NPTF
Material      :      Carbon Steel
Trim Material      :      Polyacetal
Seal Material      :      FKM/FPM
Length      :      2-7/8 in
Width      :      1-17/64 in
Temperature Rating      :      -20 to 215 deg F
Pressure Rating      :      7350 psi
  • Blowout-proof stem design
  • Rugged construction
  • POM (Polyacetal) ball seats
