Dixon® R46-200RG

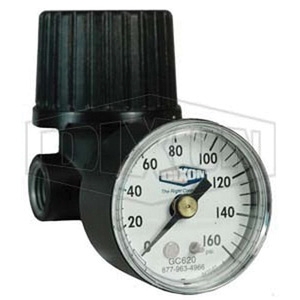

Dixon® R46 Non-Repairable General-Purpose Regulator with Gauge, 1/4 in, 13 scfm

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN R46-200RG
  • MPN: R46-200RG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Non-Repairable General-Purpose Regulator with Gauge, R46 Series, Inlet Pipe Size: 1/4 in, Flow Rating: 13 scfm, 5 - 125 psi, -30 to 150 deg F, Zinc, Dimensions: 1.65 in Dia, Includes: GC620 Gauge, Packaging Quantity: 1 PK

California residents see Prop 65 WARNINGS

Product Type      :      General-Purpose Regulator
Series      :      R46
Inlet Pipe Size      :      1/4 in
Flow Rating      :      13 scfm
Pressure Rating      :      5 - 125 psi
Temperature Rating      :      -30 to 150 deg F
Material      :      Zinc
Dimensions      :      1.65 in Dia
Includes      :      GC620 Gauge
Packaging Quantity      :      1 PK
  • Lightweight construction
  • Left to right flow
  • Wrench flats for easy installation
  • Relieving piston design allows reduction of downstream pressure when the system is dead-ended

Safety Notes:

  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings at 100 psig inlet pressure.
