Kuriyama TR5-16

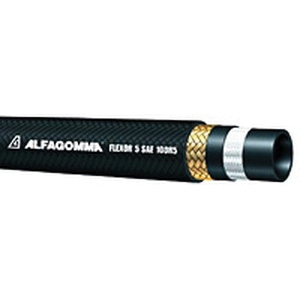

Kuriyama Alfagomma® TR5 Synthetic Rubber Hydraulic Hose, 7/8 in, 800 psi

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • Tipco Part No: KUR TR5-16
  • MPN: TR5-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Kuriyama Alfagomma® Hydraulic Hose, TR5 Series, Nominal Size: 7/8 in, Dash Size: 16, 1.24 in OD, 0.87 in ID, 800 psi, SAE Rating: SAE 100R5, Synthetic Rubber, Polyester Braid Cover, Construction: One Wire High-Tensile Steel Braid, 7-1/2 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 212 deg F High

Product Type      :      Hydraulic Hose
Series      :      TR5
Nominal Size      :      7/8 in
Dash Size      :      16
Outside Diameter      :      1.24 in
Inside Diameter      :      7/8 in
Pressure Rating      :      800 psi
SAE Rating      :      SAE 100R5
Material      :      Synthetic Rubber
Cover Material      :      Polyester Braid
Construction      :      One Wire High-Tensile Steel Braid
Bend Radius      :      7-1/2 in
Resistance Properties      :      Oil
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F

Applications: For medium-pressure service hydraulic petroleum-based oil line in impulse applications, gasoline, lube oil, fuel lines and oil for bio-diesel applications
