Dixon® HP2

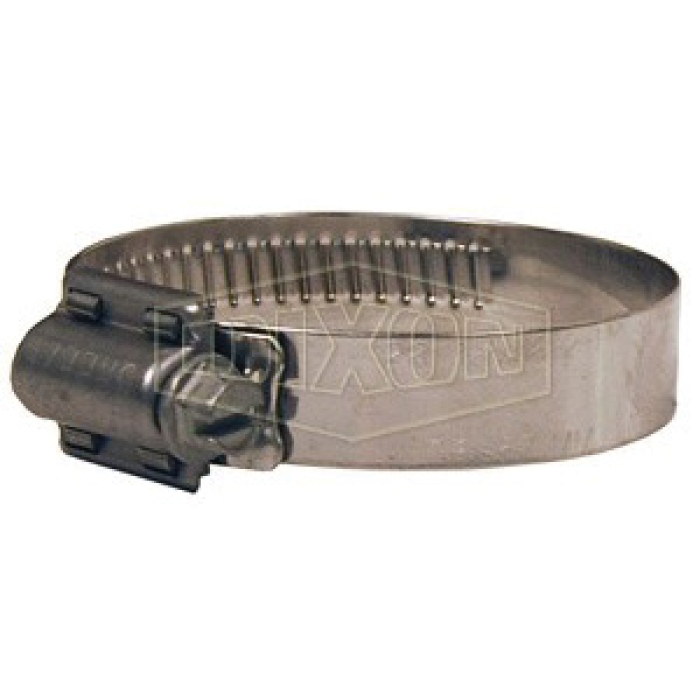

Dixon® HP Series 300 Stainless Steel HTM Hi Torque Worm Gear Clamp, 1-16/64 - 2-40/64 in, 5/8 in W

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN HP2
  • MPN: HP2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® HTM Hi Torque Worm Gear Clamp, HP Series, 2-40/64 in Maximum Clamp Diameter, 1-16/64 in Minimum Clamp Diameter, Locking Style: Screw Lock, Torque Rating: 90 in-lb, 300 Stainless Steel, 5/8 in Width

California residents see Prop 65 WARNINGS

Product Type      :      Worm Gear Clamp
Series      :      HP
Maximum Clamp Diameter      :      2-40/64 in
Minimum Clamp Diameter      :      1-16/64 in
Locking Style      :      Screw Lock
Torque Rating      :      90 in-lb
Material      :      300 Stainless Steel
Width      :      5/8 in
  • Withstands more than three times the SAE torque requirements for worm-driven clamps
  • Eight screw threads are engaged in the band simultaneously for incredible torqueing drive (over 90 in-lb), sealing pressure and vibration resistance
  • 410 stainless steel screw, slotted hex head screw design
  • 300 Series half hard stainless steel
