Tramec Sloan S768AB-12-12V

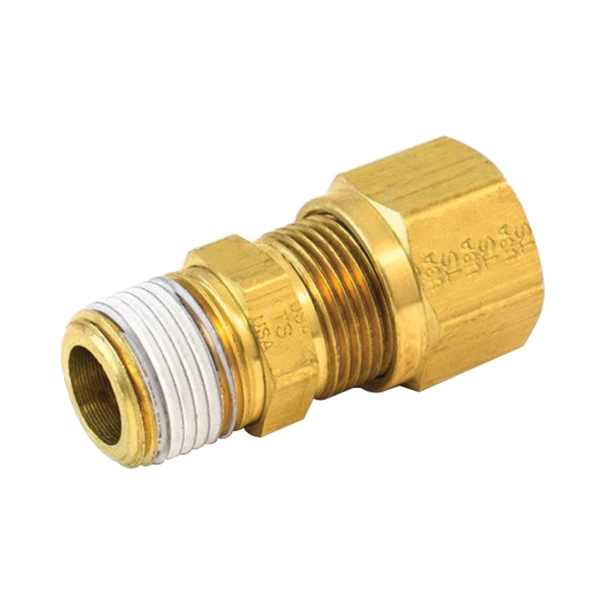

Tramec Sloan S768AB Brass Compression Connector, 3/4 in Tube x 3/4 in MNPT

  • Manufacturers: Tramec Sloan
  • Brand Name: Tramec Sloan
  • Tipco Part No: CMI 968-12-12
  • MPN: S768AB-12-12V
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Tramec Sloan Compression Connector, S768AB Series, Connection Type 1: Tube, Connection Size 1: 3/4 in, Connection Type 2: MPT, Connection Size 2: 3/4 in, Brass, Up to 150 psi, -40 to 200 deg F

Product Type      :      Connector
Series      :      S768AB
Connection Type 1      :      Tube
Connection Size 1      :      3/4 in
Connection Type 2      :      MPT
Connection Size 2      :      3/4 in
Material      :      Brass
Pressure Rating      :      Up to 150 psi
Temperature Rating      :      -40 to 200 deg F
  • Tramec Sloan's brass fittings are Made in USA
  • Machined at our facility in Ohio, high-quality is guaranteed, look for "TS USA" stamped right into the brass
  • Includes thread sealant

Applications: For SAE J844 nylon air brake tubing in air brake systems or in-cab air controls

  • video https://youtu.be/nnwzGOdkRto
