CPC PMC230412

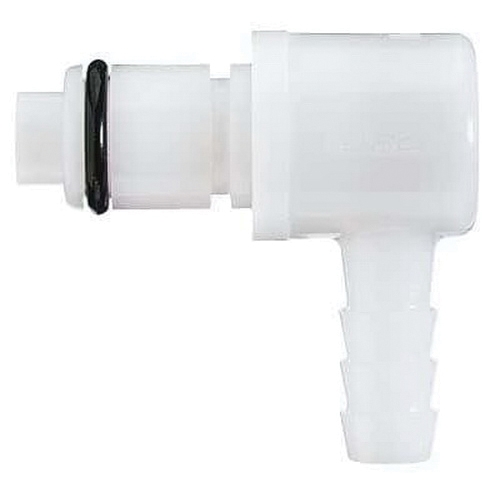

CPC PMC230412 Almond Polypropylene Straight-Through Non-Valved Elbow Insert, 1/4 in Quick Disconnect x 1/4 in Hose Barb

  • Manufacturers: CPC
  • Brand Name: CPC
  • Tipco Part No: CPC PMC230412
  • MPN: PMC230412
  • UOM: EA
  • Min. Order Qty: 25
  • Qty. Interval: 25
  • Register to see Availability

CPC Straight-Through Non-Valved Elbow Insert, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 in, 100 psi, Polypropylene, Almond, Dimensions: 1.09 in L, 32 - 160 deg F

Fitting Type      :      Insert
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in Hose Barb
Connection Type 2      :      Hose Barb
Connection Size 2      :      1/4 in
Pressure Rating      :      100 psi
Material      :      Polypropylene
Color      :      Almond
Dimensions      :      1.09 in L
Temperature Rating      :      32 - 160 deg F
  • Standard flow quick-disconnect couplings require a body and an insert of the same flow size, plug insert into body to connect fitting-fitting halves lock into place immediately, to disconnect fitting halves, simply press the thumb latch on the coupling body
