AIGNEP 80193-04
Send Print
  1. pin-int

AIGNEP 80193-04

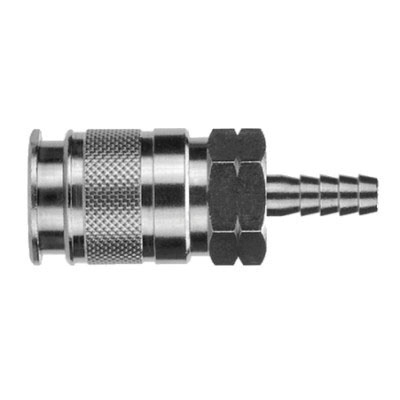

AIGNEP 80193-04 Nickel-Plated Brass Coupler, 1/4 in Multisocket Universal Quick Disconnect x 1/4 in Barb

  • Manufacturers: AIGNEP USA
  • Brand Name: AIGNEP
  • Tipco Part No: AIG 80193-04
  • MPN: 80193-04
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

AIGNEP Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Barb, Connection Size 2: 1/4 in, Hex Size: 21 mm, 0 - 232 psi, Brass, Finish: Nickel-Plated, Dimensions: 60.5 mm L x 24 mm W, 0 - 160 deg F

Fitting Type      :      Coupler
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in Barb
Connection Type 2      :      Barb
Connection Size 2      :      1/4 in
Hex Size      :      21 mm
Pressure Rating      :      0 - 232 psi
Material      :      Brass
Finish      :      Nickel-Plated
Dimensions      :      60.5 mm L x 24 mm W
Temperature Rating      :      0 - 160 deg F

Applications: For compressed air
