Dixon® 31990619

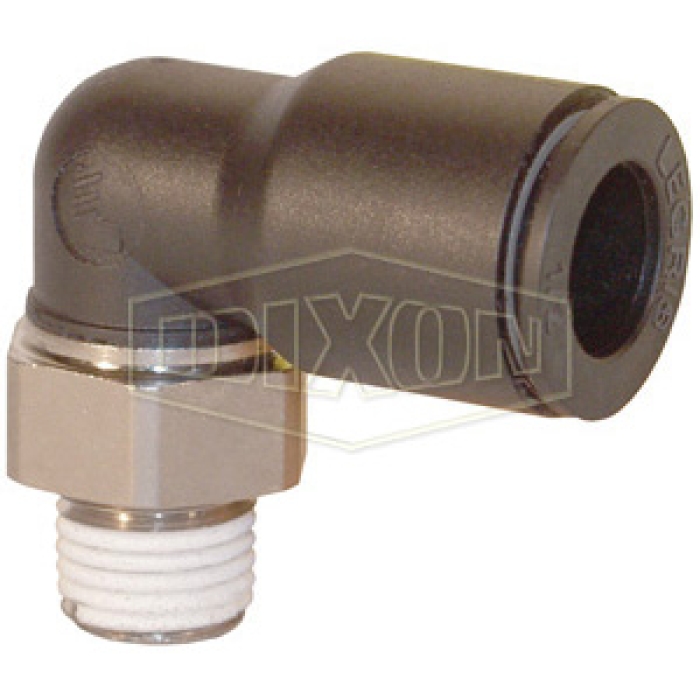

Dixon® 31990619 Nylon/Nickel-Plated Brass Legris Metric Elbow, 6 mm Push-to-Connect x 5 mm Male Metric

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 31990619
  • MPN: 31990619
  • UOM: EA
  • Min. Order Qty: 10
  • Qty. Interval: 10
  • Register to see Availability

Dixon® Legris Metric Elbow, Connection Type 1: Push-to-Connect, Connection Size 1: 6 mm, Connection Type 2: Metric, Gender 2: Male, Connection Size 2: 5 mm, Thread Size 2: M5, 290 psi, Brass, Finish: Nylon/Nickel-Plated, -4 to 175 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Elbow
Connection 1      :      6 mm Push-to-Connect
Connection Type 1      :      Push-to-Connect
Connection Size 1      :      6 mm
Connection 2      :      5 mm Metric
Connection Type 2      :      Metric
Gender 2      :      Male
Connection Size 2      :      5 mm
Thread Size 2      :      M5
Pressure Rating      :      290 psi
Material      :      Brass
Finish      :      Nylon/Nickel-Plated
Temperature Rating      :      -4 to 175 deg F
  • Positive seal for sealing and holding is accomplished instantaneously
  • Connect and disconnect numerous times
  • Full flow fitting seals on outside diameter of tubing
  • The body is orientable for positioning purposes
  • Black glass-filled nylon body
  • Polypropylene release button
  • Nickel-plated brass threads
  • Silicone-free
  • Buna-N D-seal

Instructions:

  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
