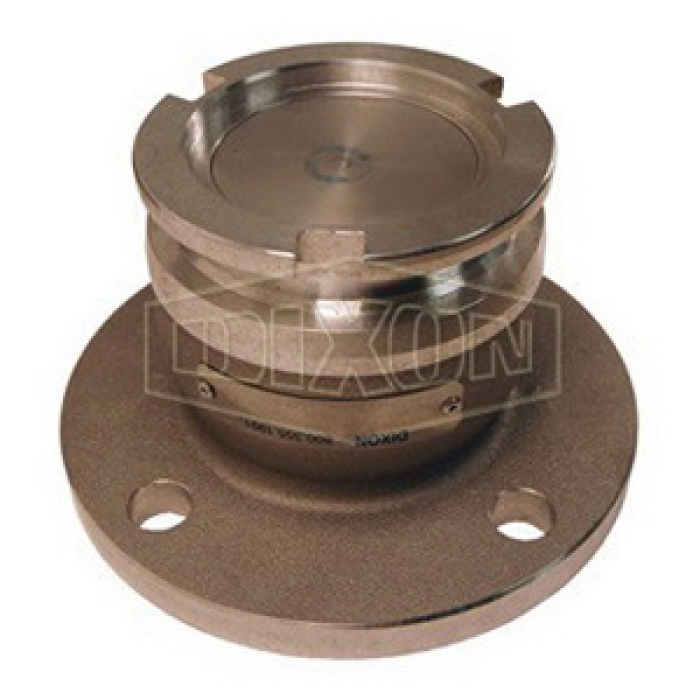

Dixon® Mann Tek Dry Disconnect Tank Unit Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 105 mm, Connection Type 2: Flange, Connection Size 2: 3 in, 230 psi, Aluminum, For Use With: #150 ASA Flange
California residents see Prop 65 WARNINGS
| Fitting Type | : | Adapter |
| Connection 1 | : | 105 mm Fitting |
| Connection Type 1 | : | Fitting |
| Gender 1 | : | Male |
| Connection Size 1 | : | 105 mm |
| Connection 2 | : | 3 in Flange |
| Connection Type 2 | : | Flange |
| Connection Size 2 | : | 3 in |
| Pressure Rating | : | 230 psi |
| Material | : | Aluminum |
| For Use With | : | #150 ASA Flange |
- Conical valve seat reduces the risk for piston blow-out
- PTFE bearings between the piston shaft and the piston guide eliminate the risk of seizure
- Easy to handle-push and turn-free flow, turn and pull-closed
- Time saving - no need to drain hoses or pipe systems
- Economical, no loss or spillage of liquids at connection or disconnection
- Safety- the valve cannot be opened until the unit is coupled
- Environmental friendly, accidental spillage eliminated when properly used
- Safe and reliable- due to rugged construction
- Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C
- Selectivity- to avoid product contamination, selective versions of the couplers and adapters are available, contact Dixon for further information
- Aluminum poppet
- Stainless steel internals
- FKM (FPM) seal
- Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756
Applications: Dry disconnect couplings are designed for the quick and spill-free connection and disconnection of hoses and pipelines. They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids
Instructions:
- Adapter is usually installed on the tank or manifold.
Safety Notes:
- Working pressure is based on psi at ambient temperature 70 deg F, for pressure ratings at other temperatures contact Dixon®.
