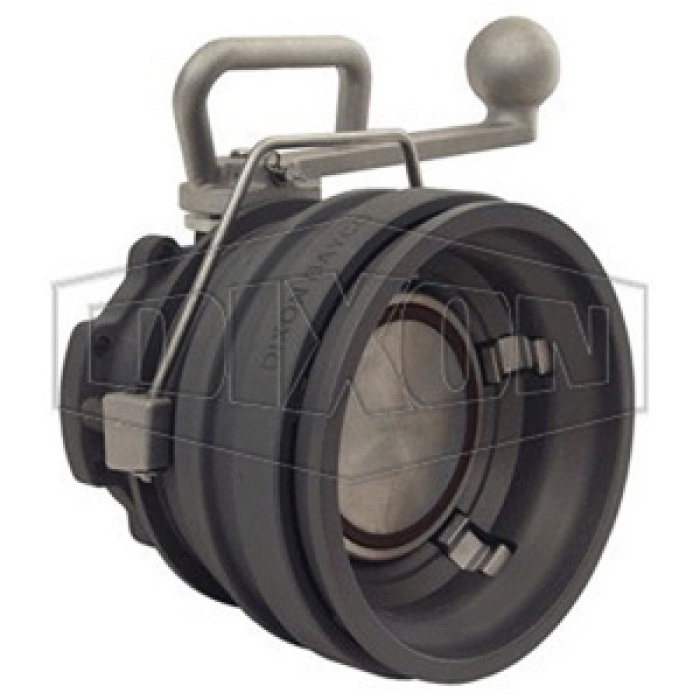

Dixon® API Coupler with Replaceable Nose Seal and FKM-B Seal, Connection Type 1: TTMA Flange, Connection Size 1: 4 in, 150 psi, Aluminum, -10 to 400 deg F, For Use With: Gasoline and Diesel, up to E100 and B100 Biofuels
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Connection 1 | : | 4 in TTMA Flange |
| Connection Type 1 | : | TTMA Flange |
| Connection Size 1 | : | 4 in |
| Pressure Rating | : | 150 psi |
| Material | : | Aluminum |
| Temperature Rating | : | -10 to 400 deg F |
| For Use With | : | Gasoline and Diesel, up to E100 and B100 Biofuels |
- Modular design, allows various face seal combinations to be compatible with different alternative fuel/performance levels and applications
- No special tools need for maintenance, very easy
- Shaft seals can be changed without removing coupler from loading arm
- Locking 5 cam design for easy alignment and tight connection and safety interlock to help ensure coupler properly attached before valve opens
- Ball-end handle for easy and comfortable operation
- Replaceable nose seal allows for quick seal replacement without removal from the loading arm
- 356 T6 aluminum anodized hard-coat body with aluminum handle and stainless steel hardware
- FKM-B seal
- Hardened 17-4PH stainless steel link, shaft, pin and crank
- Stainless steel cam
- Manufactured to American Petroleum Institute standard API RP-1004, which allows for positive connection to API valves such as the Dixon Bayco 5204 Series API valves, Pressure drop of only 3 to 4 psi
Applications: API couplers are used at the petroleum loading rack for bottom loading of petroleum tankers. They are mounted to the rack loading arm, using the built-in 4 in TTMA flange connection. When the empty petroleum tanker pulls into the loading rack to load, the API couplers are connected to the API valves on the tanker. The connection interface consists of a poppet and a plunger, which ensures a positive spill-free connection
Catalog/Catalog Cut Sheet
