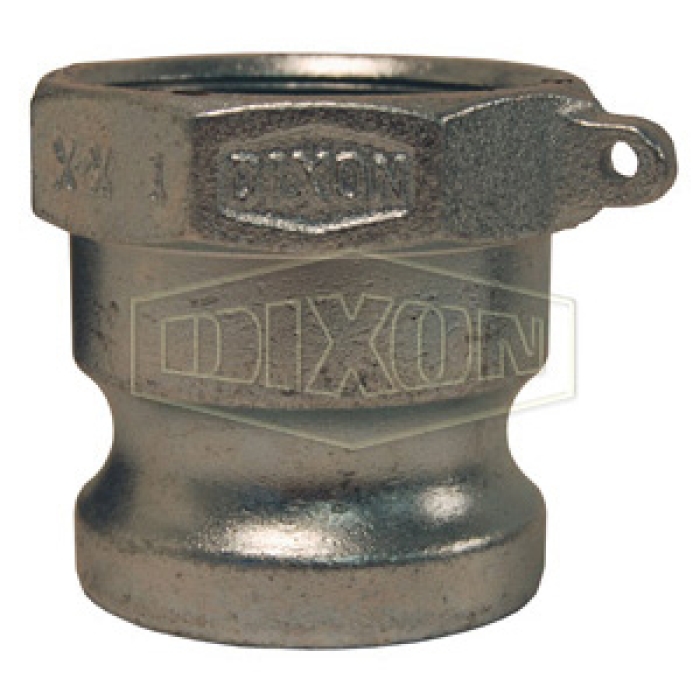

Dixon® Cam and Groove Type A Adapter, Connection Type 1: Fitting, Gender 1: Male, Connection Size 1: 3/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, 250 psi, Malleable Iron, Finish: Plated, Dimensions: 1-1/4 in Dia x 1-5/8 in L
California residents see Prop 65 WARNINGS
| Fitting Type | : | Adapter |
| Connection 1 | : | 3/4 in Fitting |
| Connection Type 1 | : | Fitting |
| Gender 1 | : | Male |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in NPT |
| Connection Type 2 | : | NPT |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Hex Size | : | 1-5/16 in |
| Pressure Rating | : | 250 psi |
| Material | : | Malleable Iron |
| Finish | : | Plated |
| Dimensions | : | 1-1/4 in Dia x 1-5/8 in L |
- Precision machined to rigid tolerances
- Produced to interchange with all product produced to commercial item description A-A-59326D
Applications: For use with liquids
Safety Notes:
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part.
- Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
- For use at elevated temperature or other unusual operating conditions, consult Dixon®.
