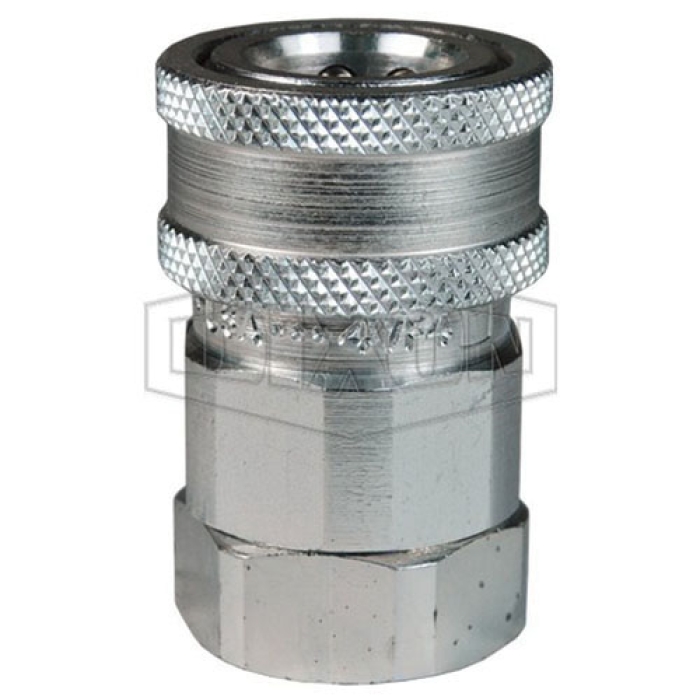

Dixon® Snap-Tite H/IH Interchange Valved Coupler, V Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 7/8 in, 6500 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.68 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Series | : | V |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 7/8 in |
| Pressure Rating | : | 6500 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 1.68 in L |
| Temperature Rating | : | -40 to 250 deg F |
- General-purpose hydraulic quick-connect provides superior flow characteristics for a variety of applications
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Tubular TV valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applications
- Nitrile (Buna-N) seals are standard
- All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage
- Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
- Interchangeable to MIL-C-51234
- Interchangeable with Snap-Tite H/IH Series and Faster TNV
Catalog/Catalog Cut Sheet
