Dixon® V12BF12-B

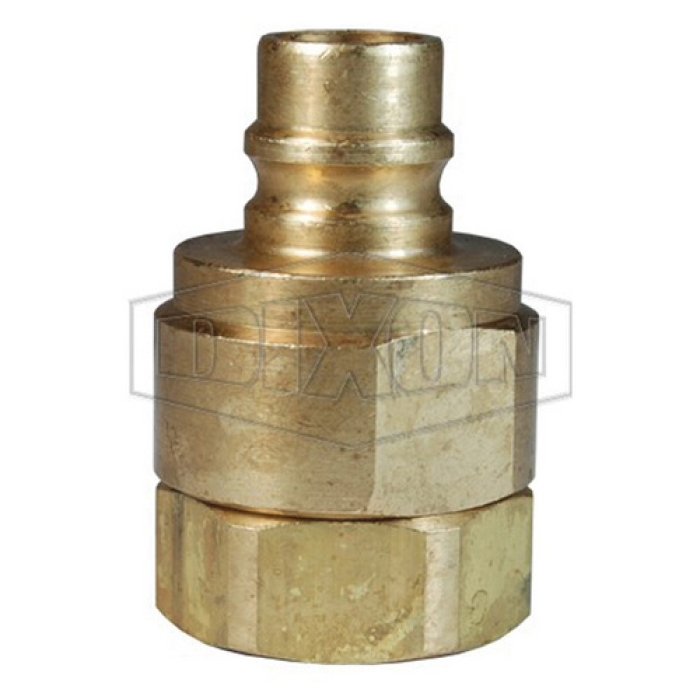

Dixon® V Series Brass Snap-Tite H/IH Interchange Valved Plug, 1-1/2 in Quick Disconnect x 1-1/2 in Female BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN V12BF12-B
  • MPN: V12BF12-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Snap-Tite H/IH Interchange Valved Plug, V Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/2 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11, Hex Size: 2-1/2 in, 350 psi, Brass, Dimensions: 2.74 in OD x 3.35 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Series      :      V
Connection 1      :      1-1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1-1/2 in
Connection 2      :      1-1/2 in BSPP
Connection Type 2      :      BSPP
Gender 2      :      Female
Connection Size 2      :      1-1/2 in
Thread Size 2      :      1-1/2-11
Hex Size      :      2-1/2 in
Pressure Rating      :      350 psi
Material      :      Brass
Dimensions      :      2.74 in OD x 3.35 in L
Temperature Rating      :      -40 to 250 deg F
  • General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
  • Machined components are manufactured using solid bar stock
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV
