Dixon® 2ES2-B

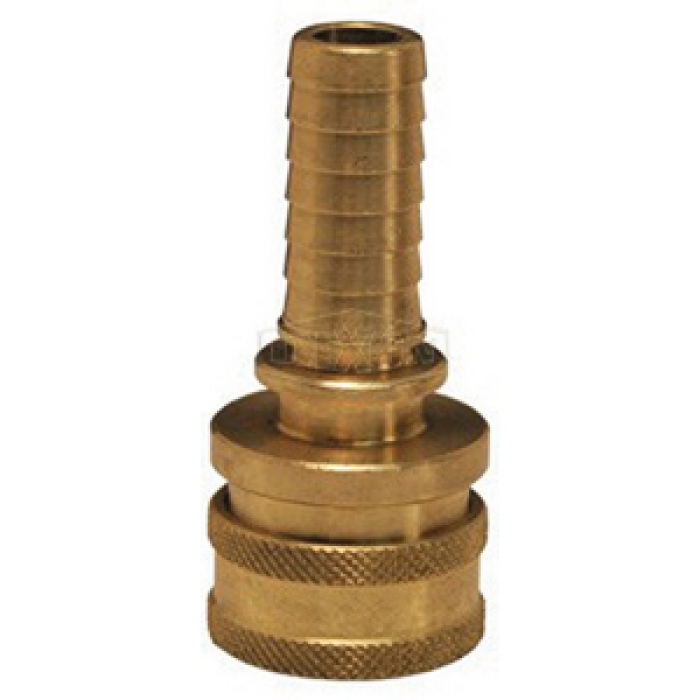

Dixon® E Series Brass Straight Through Interchange Coupler, 1/4 in Quick Disconnect x 1/4 in Hose Barb

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2ES2-B
  • MPN: 2ES2-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Straight Through Interchange Coupler, E Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: Hose Barb, Connection Size 2: 1/4 in, 5200 psi, Brass, Dimensions: 1 in OD x 2.06 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Series      :      E
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in Hose Barb
Connection Type 2      :      Hose Barb
Connection Size 2      :      1/4 in
Pressure Rating      :      5200 psi
Material      :      Brass
Dimensions      :      1 in OD x 2.06 in L
Temperature Rating      :      -40 to 250 deg F
  • Straight-through pressure-wash interchange
  • Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop
  • Machined components are manufactured using solid brass
  • Nitrile (Buna-N) seals are standard

Safety Notes:

  • Do not disconnect with pressure in line.
  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
  • Operating pressures for the standard hose barbs utilizing hose barb end connections may be dramatically reduced to that of the hose rating and hose and end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
