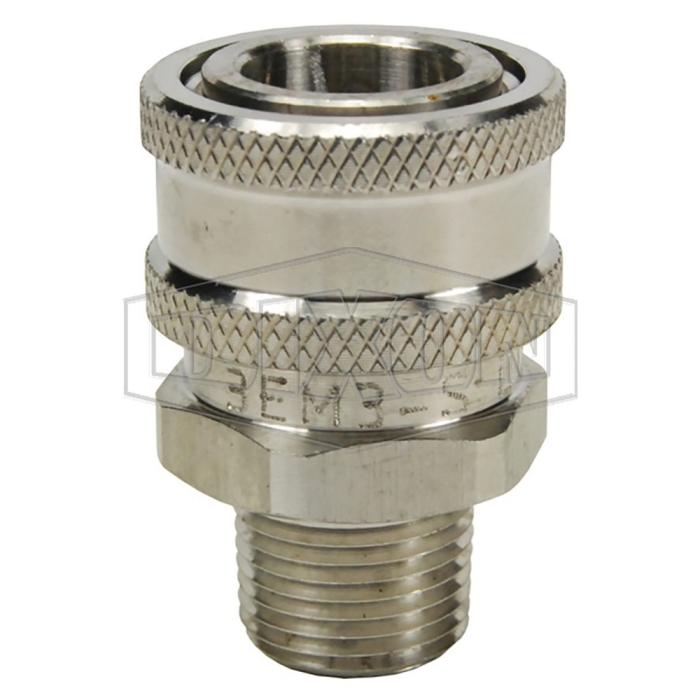

Dixon® Straight Through Interchange Coupler, E Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, 5500 psi, 303 Stainless Steel, Dimensions: 1.7 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Series | : | E |
| Connection 1 | : | 3/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 3/8 in NPT |
| Connection Type 2 | : | NPTF |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Pressure Rating | : | 5500 psi |
| Material | : | 303 Stainless Steel |
| Dimensions | : | 1.7 in L |
| Temperature Rating | : | -40 to 250 deg F |
- Straight-through pressure-wash interchange
- Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
- These couplers have no internal valves, providing maximum flow with minimum pressure drop
- Machined components are manufactured using 303 stainless steel bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
Safety Notes:
- Do not disconnect with pressure in line.
- Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
Catalog/Catalog Cut Sheet
