Aeroquip® NJIC-10-B

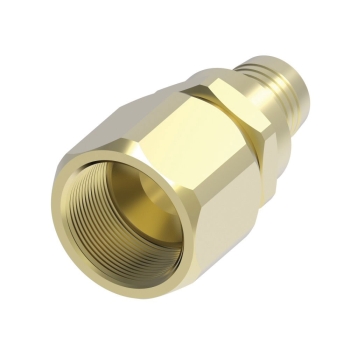

Aeroquip® Everswage NJIC Brass Female JIC Permanent Swage Straight Hose Insert, 5/8 in

  • Manufacturers: Eaton
  • Brand Name: Aeroquip®
  • Tipco Part No: AER NJIC-10-B
  • MPN: NJIC-10-B
  • UPC: 678146040732
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Permanent Swage Straight Hose Insert, NJIC Series, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: JIC, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 1 x 7/8 in, Brass

California residents see Prop 65 WARNINGS

Hose Connection      :      5/8 in
Fitting Type      :      Hose Insert
Series      :      NJIC
Connection Type 1      :      Hose
Connection Size 1      :      5/8 in
Hose Dash Size      :      10
Connection 2      :      5/8 in JIC
Connection Type 2      :      JIC
Gender 2      :      Female
Connection Size 2      :      5/8 in
Nominal Size      :      5/8 in
Thread Size 2      :      7/8-14
Hex Size      :      1 x 7/8 in
Material      :      Brass

The Eaton Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory
