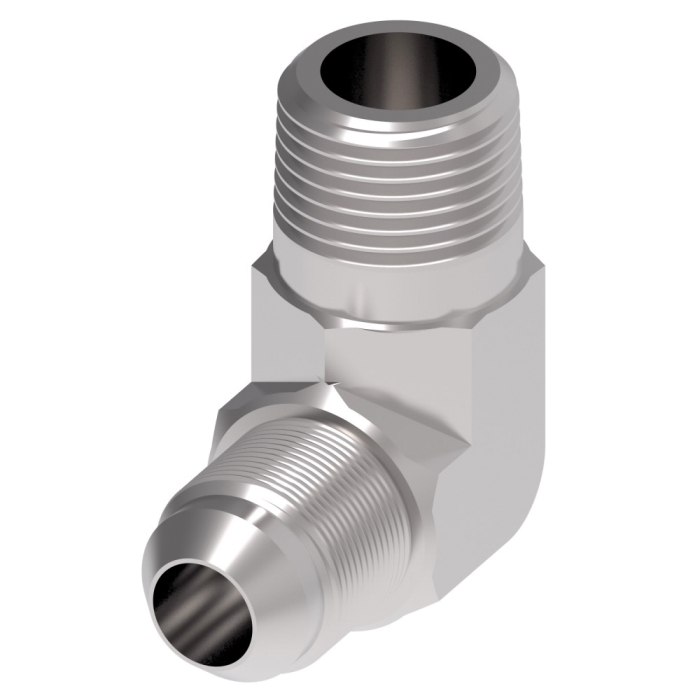

Aeroquip® 90 deg Elbow, 2024 Series, Connection Type 1: SAE 37 deg JIC Flare, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: 7/16-20, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 0.748 in, Dimension Standards: SAE 070202, 7000 psi, Carbon Steel, Finish: Dura-Kote, 1.594 in Length, 0.748 in Width, 1.494 in Height, -65 to 250 deg F
| Fitting Type | : | 90 deg Elbow |
| Series | : | 2024 |
| Connection 1 | : | 1/4 in JIC |
| Connection Type 1 | : | SAE 37 deg JIC Flare |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/4 in |
| Thread Size 1 | : | 7/16-20 |
| Connection 2 | : | 3/8 in NPT |
| Connection Type 2 | : | NPTF |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Hex Size | : | 0.748 in |
| Dimension Standards | : | SAE 070202 |
| Pressure Rating | : | 7000 psi |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| Length | : | 1.594 in |
| Width | : | 0.748 in |
| Height | : | 1.494 in |
| Temperature Rating | : | -65 to 250 deg F |
Eaton has provided a comprehensive product line focus to be the #1 choice of Eaton channel partners and OE manufacturers for a select group of carbon steel adapters.
- Improved and consistent corrosion resistance featuring Dura-Kote™
Applications: Hydraulic circuits and general fluid conveyance in machine building, mining, metals and minerals, mobile machinery and equipment, oil and gas, rail, renewables, vehicles
