Dixon® 3770804C

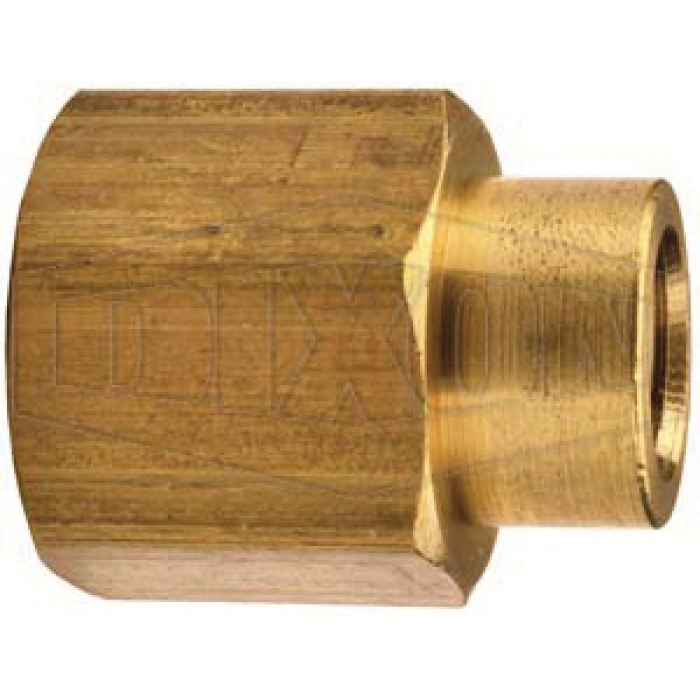

Dixon® 3770804C Brass Reducer Coupling, 1/2 in FNPTF x 1/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 3770804C
  • MPN: 3770804C
  • UOM: EA
  • Min. Order Qty: 25
  • Qty. Interval: 25
  • Register to see Availability

Dixon® Reducer Coupling, Connection Type 1: NPTF, Gender 1: Female, Connection Size 1: 1/2 in, Thread Size 1: 1/2-14, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 1-1/16 in, Brass, For Use With: Brass/Copper/Iron Pipe, Dimensions: 1.28 in L, Dimension Standards: SAE 130138, -65 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Reducer Coupling
Connection 1      :      1/2 in NPT
Connection Type 1      :      NPTF
Gender 1      :      Female
Connection Size 1      :      1/2 in
Thread Size 1      :      1/2-14
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      1-1/16 in
Material      :      Brass
For Use With      :      Brass/Copper/Iron Pipe
Dimensions      :      1.28 in L
Dimension Standards      :      SAE 130138
Temperature Rating      :      -65 to 250 deg F
  • Dry seal

Applications: For any low to medium pressure line connection and non-potable water service

  • pdfCatalog/Catalog Cut Sheet https://16000tte.stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_1020304C_CAT.pdf
  • pdfSDS https://16000tte.stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3731202C_SDS.pdf
  • pdfSpecification Sheet https://16000tte.stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3770402C_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://16000tte.stage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_3770804C_TD.pdf
