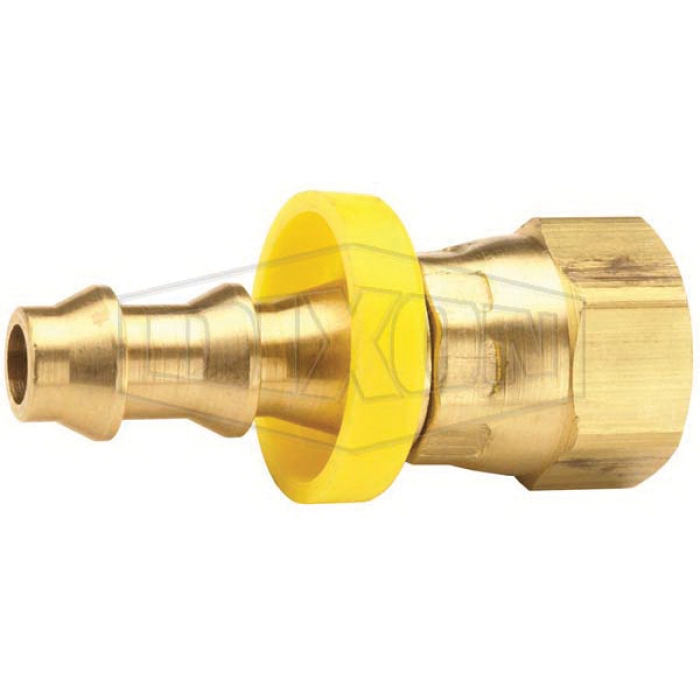

Dixon® Push-On Hose Barb with Plastic Cap, Connection Type 1: Hose Barb, Connection Size 1: 1/4 in, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 7/16-20 UNF, Hex Size: 9/16 in, 350 psi, Brass, Dimensions: 1-1/2 in L, -40 to 150 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Hose Barb |
| Connection 1 | : | 1/4 in Hose Barb |
| Connection Type 1 | : | Hose Barb |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in JIC Swivel |
| Connection Type 2 | : | SAE 45 deg/37 deg JIC Swivel |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 7/16-20 UNF |
| Hex Size | : | 9/16 in |
| Pressure Rating | : | 350 psi |
| Material | : | Brass |
| Dimensions | : | 1-1/2 in L |
| Temperature Rating | : | -40 to 150 deg F |
- Dual angle seat
- Yellow plastic cap
Applications: For pneumatic service, most fluids, low-pressure hydraulics and non-potable water service
Instructions:
- Assembly instructions: 1. Trim hose end with smooth square cut.
- 2. Lubricate either push-on fitting, hose or both.
- 3. Insert push-on fitting into hose until first barb is in hose.
- 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end.
- Push with a steady force until end of hose is covered by yellow plastic cap.
- Disassembly instructions: 1. Leaving push-on fitting in place, make a 1 in cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
- 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Safety Notes:
- Dixon® push-on fittings are intended for use with Lok-On (push-on style) hose only.
- Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
